Installation Kit, Water Tank Tee Kit 1″x 11″
50 in stock

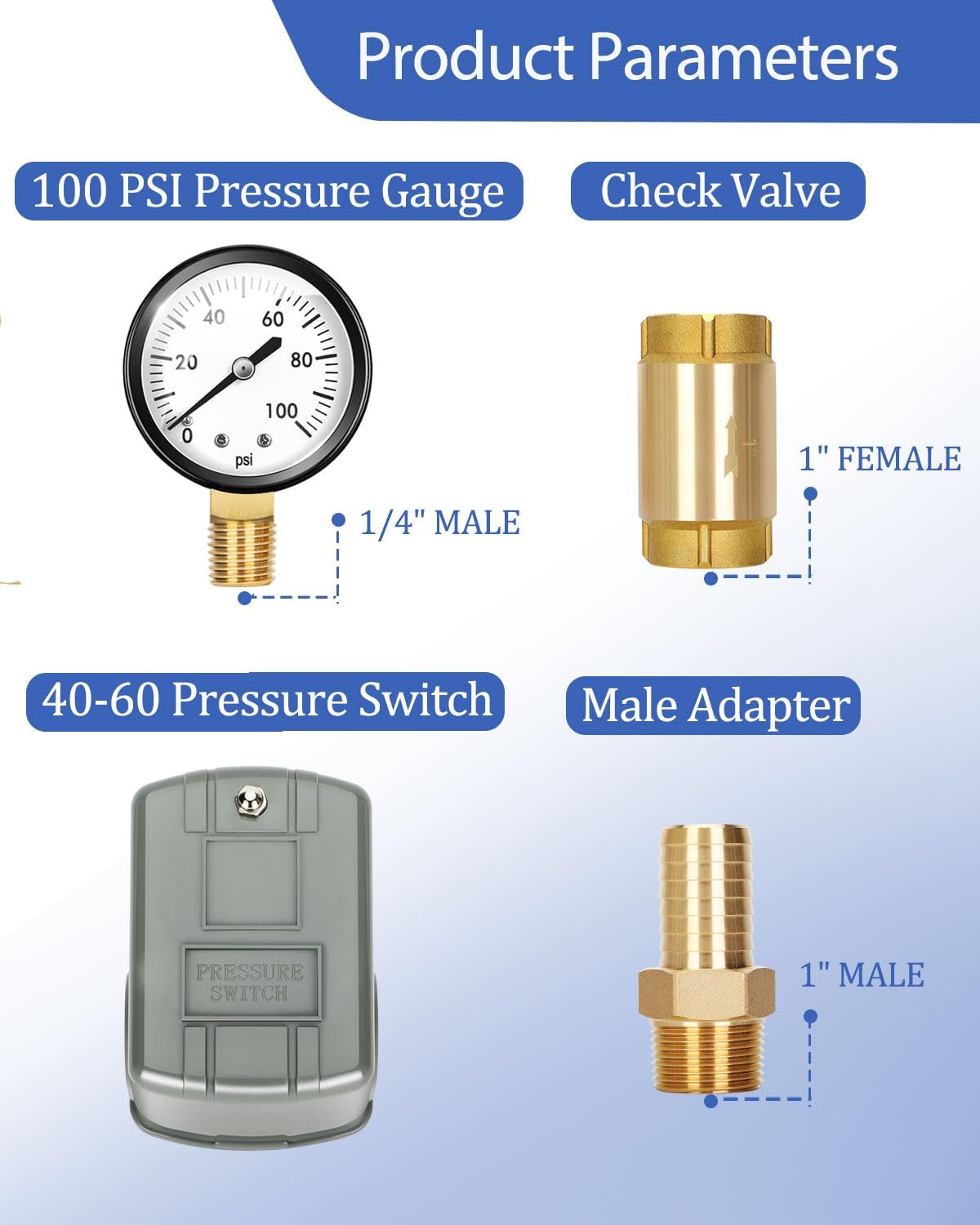

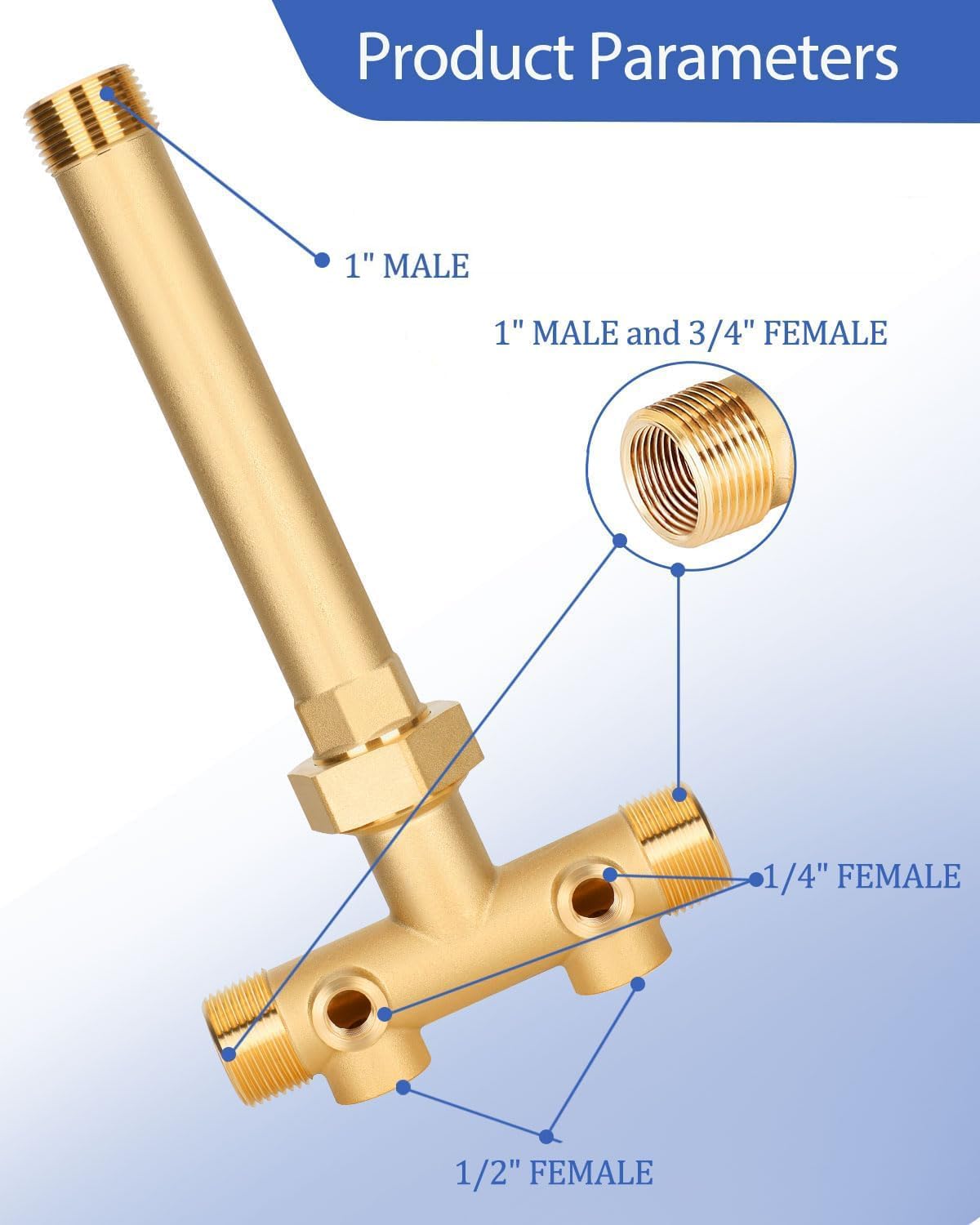

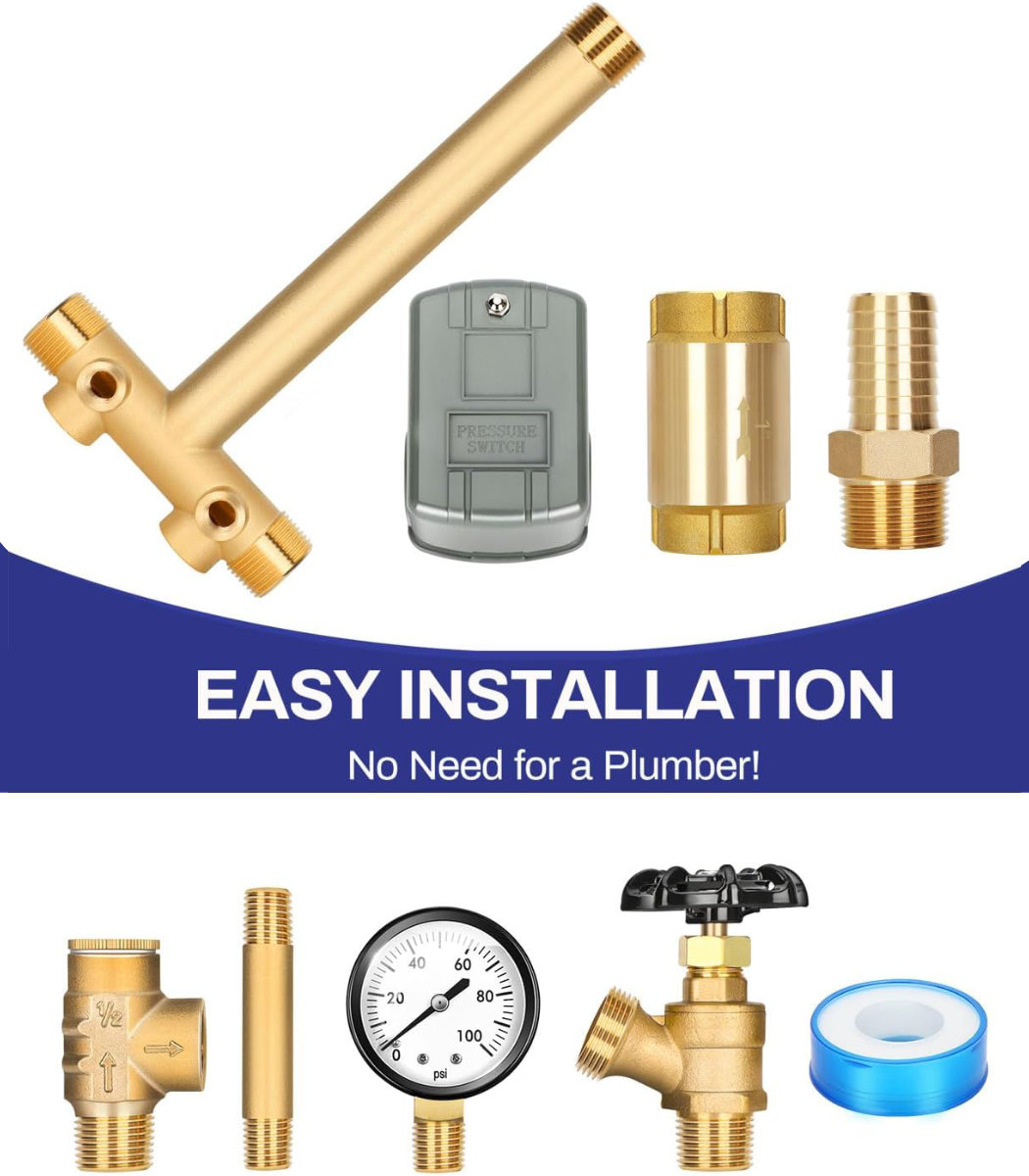

This pressure tank tee to fit most pressure tanks with diameters up to 16″. Kit includes: 11″ Tank Tee with Union, 40-60 Pressure Switch, 100 PSI Pressure Gauge, 100 PSI Pressure Relief Valve, Drain Valve, Ball Valve, Check Valve, Male Adapter. Both ends of the tee have male 1″ NPT and female 3/4″NPT threads.
$15,900.00
50 in stock
Quoted deliveries are available
- Material and Exterior Finish: Brass
- Item dimensions L x W x H: 12.5 x 5.9 x 3.5 inches
- Inlet Connection Size: 1 inch
- Inlet Connection Type: National Pipe Tapered
- Outlet Connection Type: NPT
- Number of Ports: 3
- Outlet Connection Size: 0.75 inches
- Maximum Operating Pressure: 60 psi
Or, Request a Quote Instead?
If you’d like us to customize a quote with this and/or other items, please respond by filling out the form below and we’ll get back to you right away to fulfil your order.

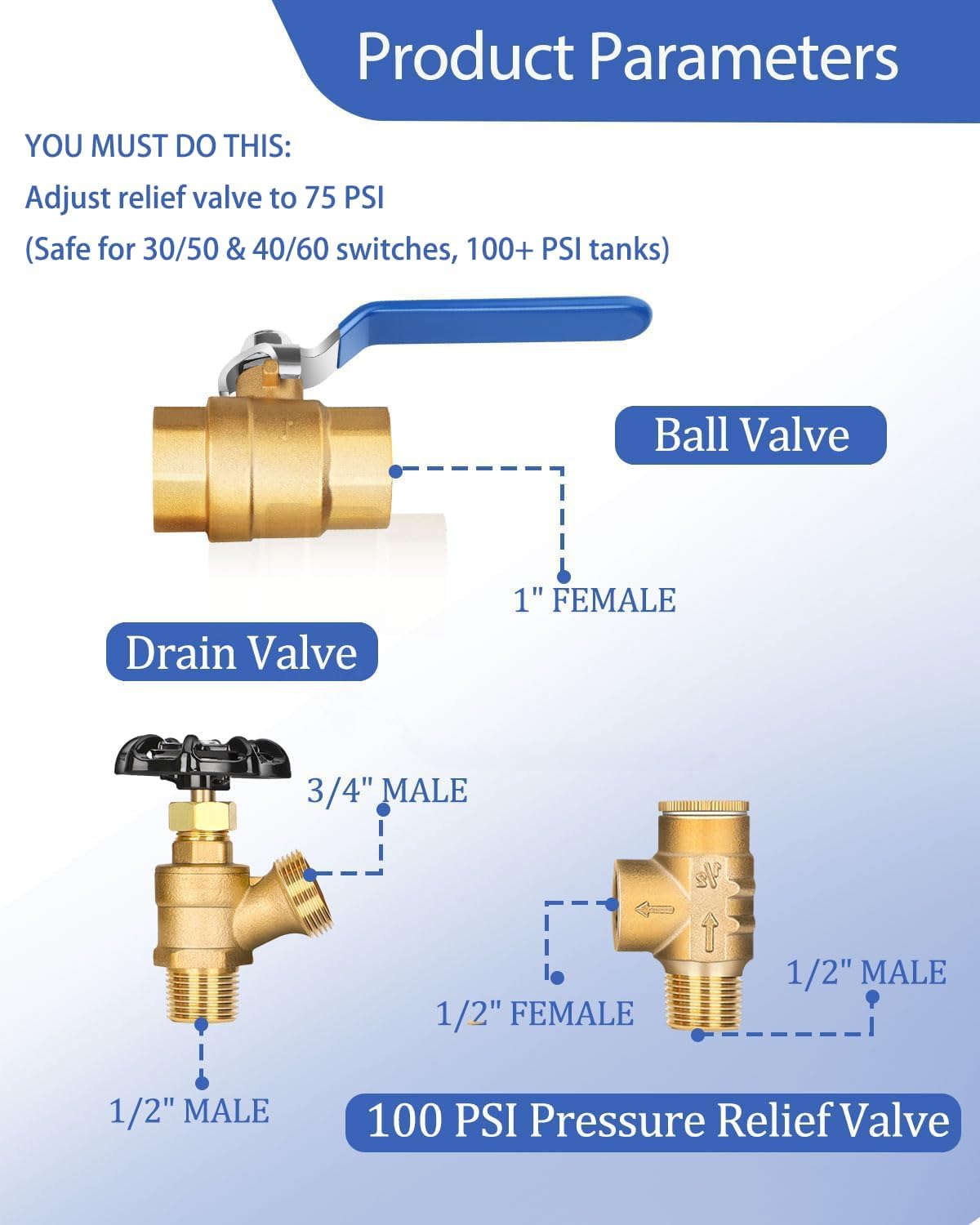

- UNSET VALVE – YOU MUST ADJUST TO 75 PSI BEFORE USE: This relief valve ships unset. Turn the adjustment screw until pop-off reads 75 PSI — safe for all tanks ≥100 PSI and both 30/50 & 40/60 switches. Visual learners can search online tutorials, just make sure 75 PSI is your target.

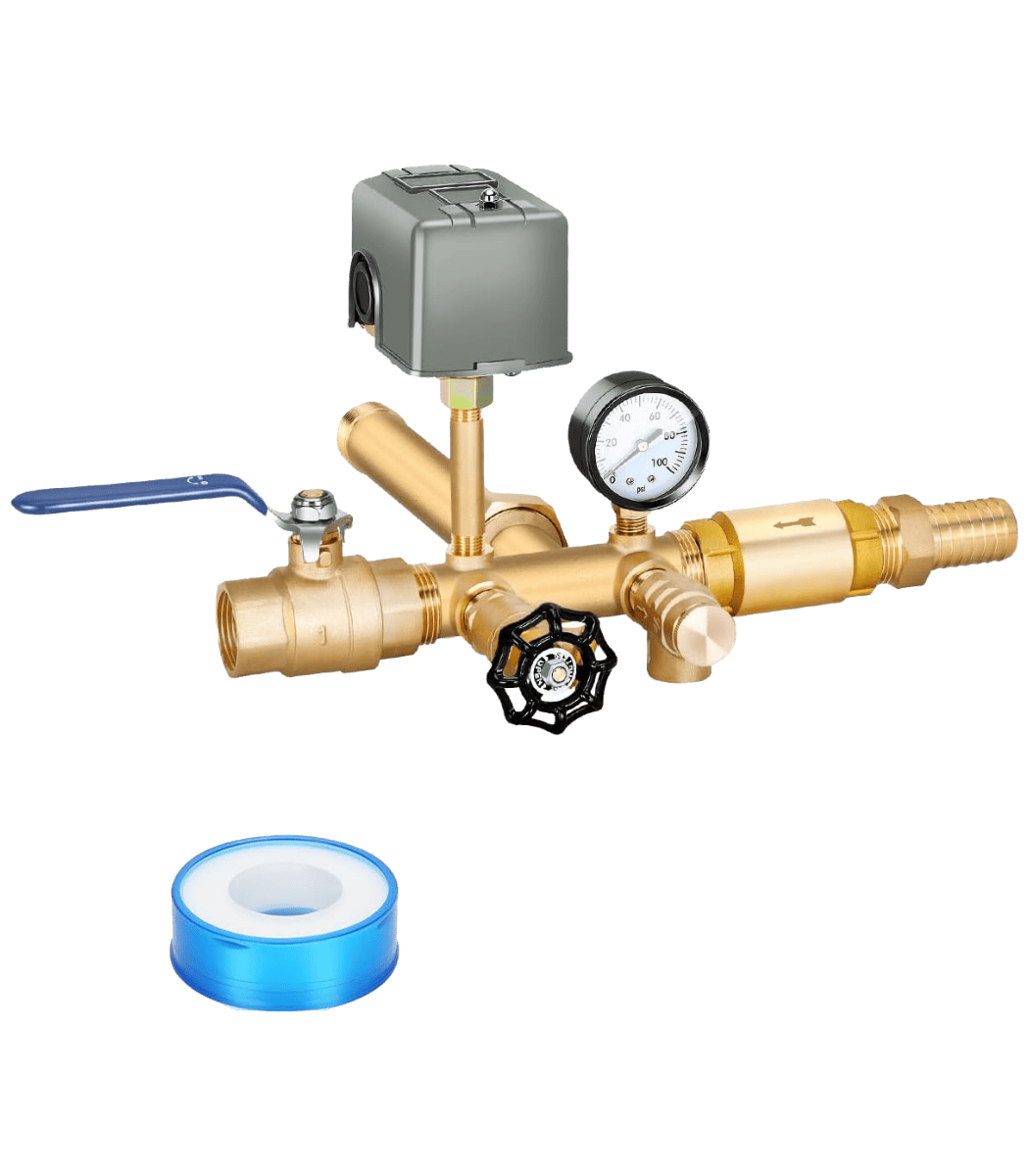

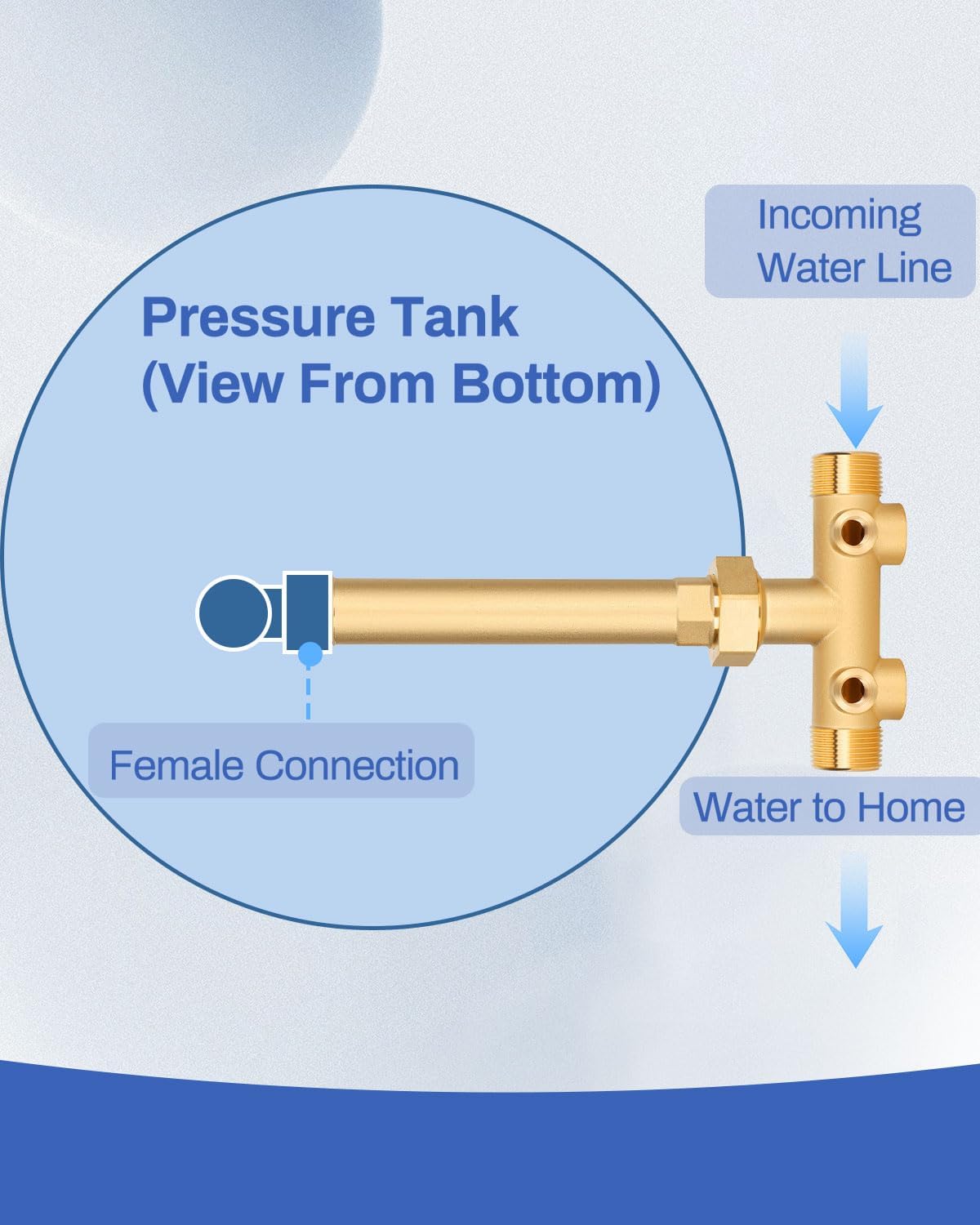

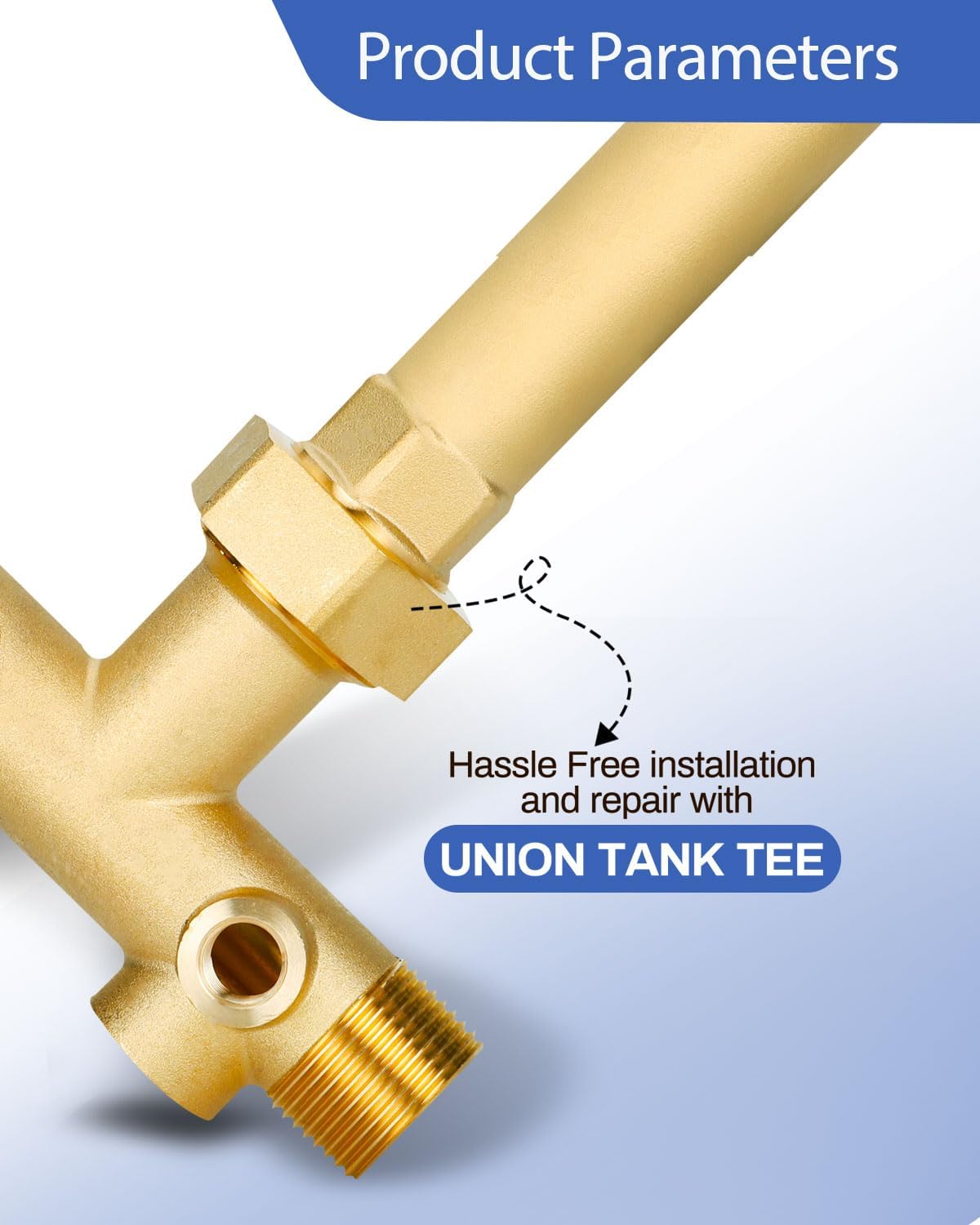

- Pressure Tank Installation Kit: This pressure tank tee to fit most pressure tanks with diameters up to 16″. Kit includes: 11″ Tank Tee with Union, 40-60 Pressure Switch, 100 PSI Pressure Gauge, 100 PSI Pressure Relief Valve, Drain Valve, Ball Valve, Check Valve, Male Adapter. Both ends of the tee have male 1″ NPT and female 3/4″NPT threads.
- Safety Well Tank Tee: The well pump pressure switch can automatically control the water pump’s on/off when it hits pressure points at 40/60 psi. When the water pressure tank switch is broken and overpressure, the pressure relief valve will blast water to evacuate pressure, it is to protect your tank and plumbing from breaking. Drain valve for drain all the lines, offer convenience for your plumbing work or tank replacement when needed.
- High Quality Pressure Tank Tee Kit: The pressure tank tee is made of high quality brass that is corrosion resistant. It is also leak-free and can be installed quickly and easily. lead-free, so it’s safe for your family to use.
- Easy to Install and Use: this is a great pressure tank installation kit that will save you a lot of trouble and time. It is also very easy to use and will help you to install a pressure tank within minutes. It’s recommended that you check all your existing plumbing before installing the new pressure tank tee.
- Our pressure tank tee kit is made of high quality materials and has an extra-long service life. Should any queries arise regarding the pressure tank tee kit, rest assured, we stand ready to provide a satisfactory solution.
